A personal weather station (PWS) is a great way to monitor local weather conditions and gain real-time insights into temperature, humidity, wind speed, and more. Have you ever wanted to fine-tune your personal weather station for more precise forecasts? Whether you’re a weather geek, storm chaser, or just love DIY projects, these hacks will take your weather-tracking game to the next level.
1. Shielding Your Thermometer for Better Accuracy
Problem:
Many basic weather stations come with a built-in thermometer that is prone to temperature fluctuations due to direct sunlight or radiation from nearby surfaces. This can cause inaccurate readings, especially in the summer months.
Solution:

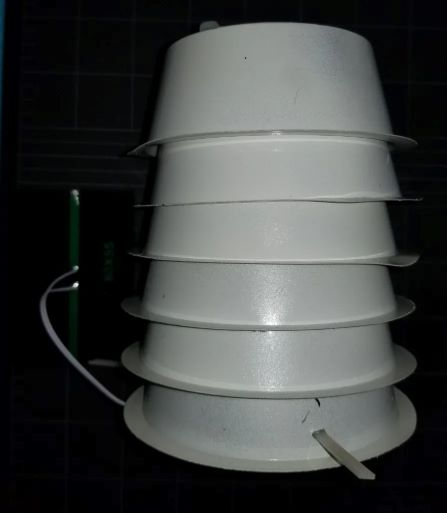

Build a radiation shield to protect your thermometer from direct sunlight while allowing airflow.
Source: IoT Kits
DIY Method:
- Use a stack of white plastic plates or bowls (disposable ones work well).
- Drill holes around the edges to allow air circulation.
- Stack them together with small spacers (nuts, washers, or pieces of tubing) between each layer.
- Mount this shield around your thermometer, ensuring it remains well-ventilated but protected from direct sunlight.
Bonus Tip: Paint the shield white to reflect sunlight and further minimize heat absorption.
2. Upgrading Your Anemometer for More Precise Wind Readings
Problem:
Low-cost anemometers may not respond well to light breezes or may underreport wind speeds due to friction in their bearings.
Solution:
Lubricate and calibrate your anemometer for better sensitivity.
DIY Method:
- Disassemble the anemometer and clean any dust or debris.
- Apply a small amount of silicone lubricant to the bearings to reduce friction.
- If possible, use a fan with a known speed to check accuracy and make adjustments.
Bonus Tip: For optimal accuracy, mount your anemometer at least 10 feet (3 meters) above obstructions. For reference, professional weather stations follow the World Meteorological Organization standard of 33 feet (10 meters) for wind measurements.
3. Enhancing Rain Gauge Accuracy with a Simple Funnel Hack
Problem:
Many standard rain gauges have small openings, which can miss some rainfall or lead to evaporation loss.
Solution:
Increase the catchment area with a larger funnel.
DIY Method:
- Find a funnel that fits snugly over your rain gauge’s opening.
- Ensure the funnel’s diameter is twice the original opening for more precise collection.
- If using a plastic funnel, coat the inside with non-stick spray to help water flow smoothly.
Bonus Tip: If you’re using a manual rain gauge, ensure it is level and away from obstructions like trees or walls that can block rain.
4. Boosting Wireless Signal Range for Remote Placement
Problem:
Some weather stations have limited wireless transmission ranges, causing data dropouts if placed too far from the receiver.
Solution:
Improve your signal by adding a homemade antenna extension.
Source: Offgridweb
DIY Method:
- Use a simple wire extension by soldering a longer antenna wire to the existing one inside your transmitter.
- Alternatively, use a parabolic reflector (a curved metal sheet, a foil-covered cardboard or a modified aluminum can) to direct the signal toward your receiver.
Bonus Tip: If you’re dealing with interference from walls or other objects, try relocating your receiver to an area with fewer obstacles.
5. Weatherproofing Your Station for Longevity
Problem:
Exposure to the elements can cause wear and tear on your weather station, leading to sensor malfunctions over time.
Solution:

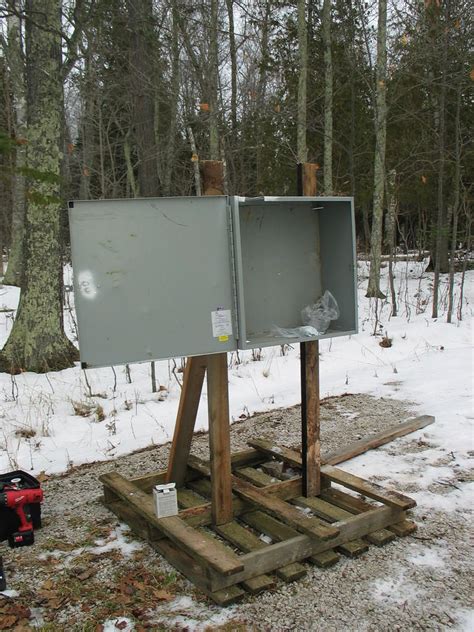

Use protective coatings and enclosures to extend your equipment’s life.
Source: APRS World
DIY Method:
- Waterproof electronics. Apply a thin layer of silicone sealant around battery compartments and sensor connections.
- UV protection. Use a clear UV-resistant spray on plastic components to prevent sun damage.
- Rust prevention. Coat metal parts with rust-resistant spray or marine-grade grease.
Bonus Tip: Check your weather station regularly for signs of wear and replace worn-out components before they fail completely.
6. Automating Data Collection with a Raspberry Pi
Problem:
Some weather stations store data only in their internal memory, requiring manual downloads.
Solution:

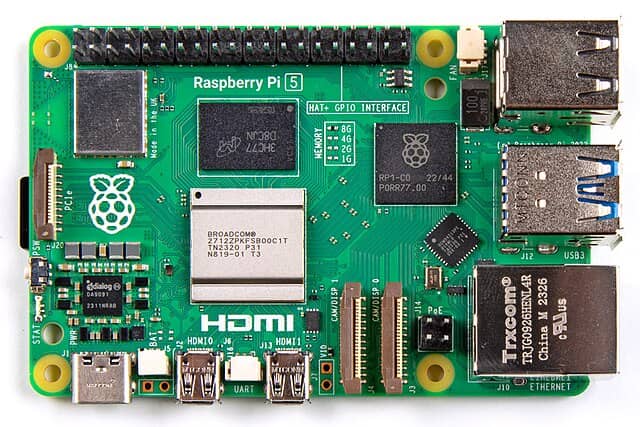

Set up a Raspberry Pi to automatically collect and upload data.
Source: SparkFun Electronics, CC BY 2.0, via Wikimedia Commons
DIY Method:
- Connect your weather station to a Raspberry Pi via USB or wireless protocols.
- Use software like Weewx or Cumulus to log and upload your weather data.
Bonus Tip: Add a solar panel and battery pack to keep your Raspberry Pi running 24/7 without interruptions.
Final Thoughts
Enhancing your weather station doesn’t have to be expensive or complicated. With a few simple modifications, you can dramatically improve data accuracy, extend the range of your sensors, and protect your equipment from harsh weather conditions. Try out these DIY upgrades and compare your readings with Rain Viewer’s high-precision radar data.
